This product features modular design for easy maintenance. The system includes self-diagnostic capabilities that provide specific error prompts in case of malfunction, facilitating quick problem identification and resolution. Optional mechanical shutter functionality significantly enhances safety by cutting off the laser beam even in the event of circuit failure, thereby preventing accidental injuries. Additionally, the product can be equipped with an optional energy feedback module that monitors laser pulse energy in real-time. If the actual energy deviates significantly from the set energy, the system promptly alerts the user, preventing accidental injuries due to excessive energy and ensuring treatment effectiveness by avoiding insufficient energy during normal use.
| Part Number | Risu Nano ODM PF23 |
| Repetition Rate (Hz) | 1-10 |
| Energy (mJ) | 1200@1064nm |
| 600@532nm | |
| Pulse Width (ns) | 6 |
| Aiming Beam | 650nm , ≤5mW |

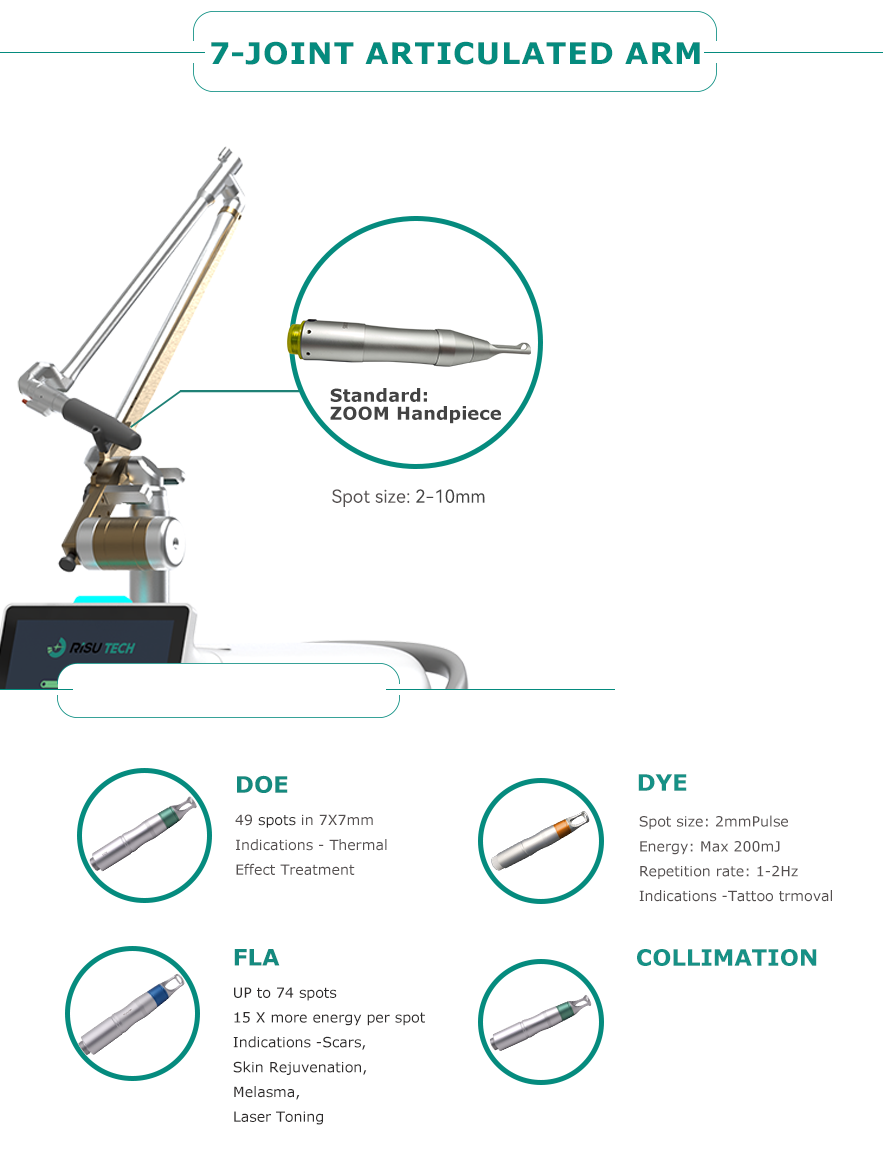

| Transmission System | 7-joint articulated arm |
| Mode Field Distribution | Flat-top |
| Cooling Method | Water cooling |
| Operating Temperature | 15-35 ℃ |
| Power Consumption | ≤2000W |
| Dimension (mm) | 550×881.7×1588.8 |
| Voltage | 220/110V ; 50/60Hz |
The picosecond laser has an extremely narrow pulse width and ultra-high peak power. It can remove pigment targets at targeted locations through selective photothermal and photomechanical effects without harming normal tissue. It has become very popular in the medical beauty industry in recent years. As a source manufacturer of laser medical equipment accessories, Lingsu Medical Technology has launched a series of ODM kit products called PFxx “Nd:YAG/KTP Picosecond Laser System” in order to meet application needs. The laser pulse width is 350ps/500ps/2ns, and the single Pulse energy 500mJ/350mJ@1064nm is optional, and the peak power can reach up to 1.43GW. A variety of lasers, power supplies, and light guide arms are optionally available, and dye wavelength conversion and honeycomb lattice technology can be implemented. Other configurations can be customized.
